Compression force transducer XC-170


Area: < 3.000 kN, optional with integrated amplifier
Size: Ø < 510 mm
Notes: Customizable to different machine types



Measuring range

<3.000 kN

Sensitivity / Output signal

+ 1,3 mV/V

± 10 V

4-20 mA


< 0.3 % from full scale


< 0.3 % from full scale


< 0.1 % from full scale

Temperature influence on final value

± 0.02 % FS / 10 K

Temperature influence on zero point

± 0.01 % FS / 10 K

Electrical data

Power supply

5 ... 15 VDC

(without amplifier)

18 ... 30 VDC (with amplifier)

Sensitivity / Output signal

+ 1,3 mV/V

± 10 V

4-20 mA

Cut-off frequency

2000 Hz

Mechanical data


Individually according requirements


150 % from full scale

Life endurance alternating 100% load

6x 107 cycles

Electrical connection

Individually according requirements

Environmental data

Storage temperature

-40 ... 85 ° C

Compensated temperature range

20 ... 80 ° C

Ambient temperature

0 ... 80 ° C

Protection rate

IP 54

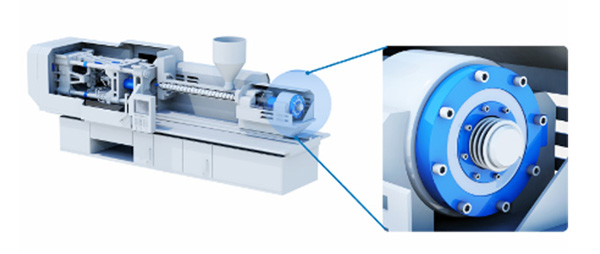

The force sensors of the XC-170 series measure the injection pressure in fully electric injection molding machines behind the mixing screw. The sensor is very linear, has a very stable zero-point and an overload resistance of 150% of the final value. The massive steel construction and the sealed design (IP 54) guarantee trouble-free operation, even under harsh environmental conditions. The sensors are very temperature stable and allow a maximum consistency of the shot weight.

The force sensors have either a passive strain gauge full bridge output or an amplified ± 10 V or 4 … 20 mA output signal. The measuring range can be adjusted exactly to the required injection force. The dimensions and the hole pattern can also be tailored to your application and the required force range.

Individually developed sensors adapted to your task:

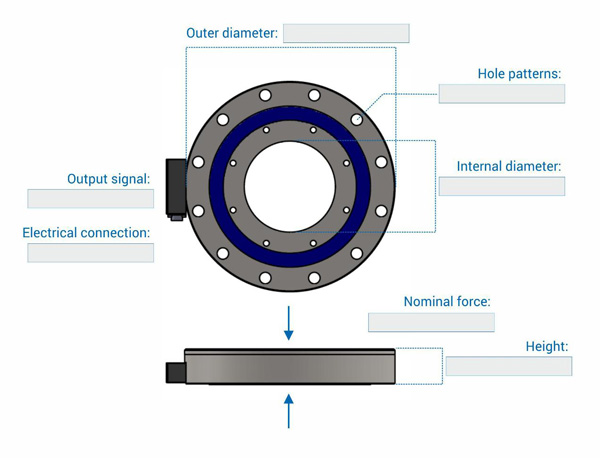

In order to obtain reliable measurement results, it is often unavoidable to adapt the force sensors and force transducers to the specific requirements in order to best meet the environment and the measuring task. Tell us your requirements for the force sensor XC-170:

· Type / Description

· Nominal force

· Output signal

· Electrical connection (cable length / plug type)

· Outer diameter

· Inner diameter

· Height

· Mounting holes



Type / Description

Nominal force


Output signal

Electrical connection (cable length / plug type)

Outer Diameter / Inner Diameter (mm)


Mounting holes

Special requirements on material and surface finish
